Catalogue p.10
Angle Bar — dimensions (1 of 2)
20×20 mm to 200×200 mm, thickness 3–25 mm, radius of fillet, area, unit weight kg/m and weight per 6 m length.
Resources
Spec tables & downloads
Dimension tables and reference pages from our catalogue, plus the full PDF. Click any table to enlarge it.
Product Catalogue 2018 (PDF) The complete 60-page printed catalogue: all sections, photos and dimension tables.
Steel dimension tables
Catalogue p.11
Angle Bar — dimensions (2 of 2)
Continuation of the angle bar table.
Catalogue p.12

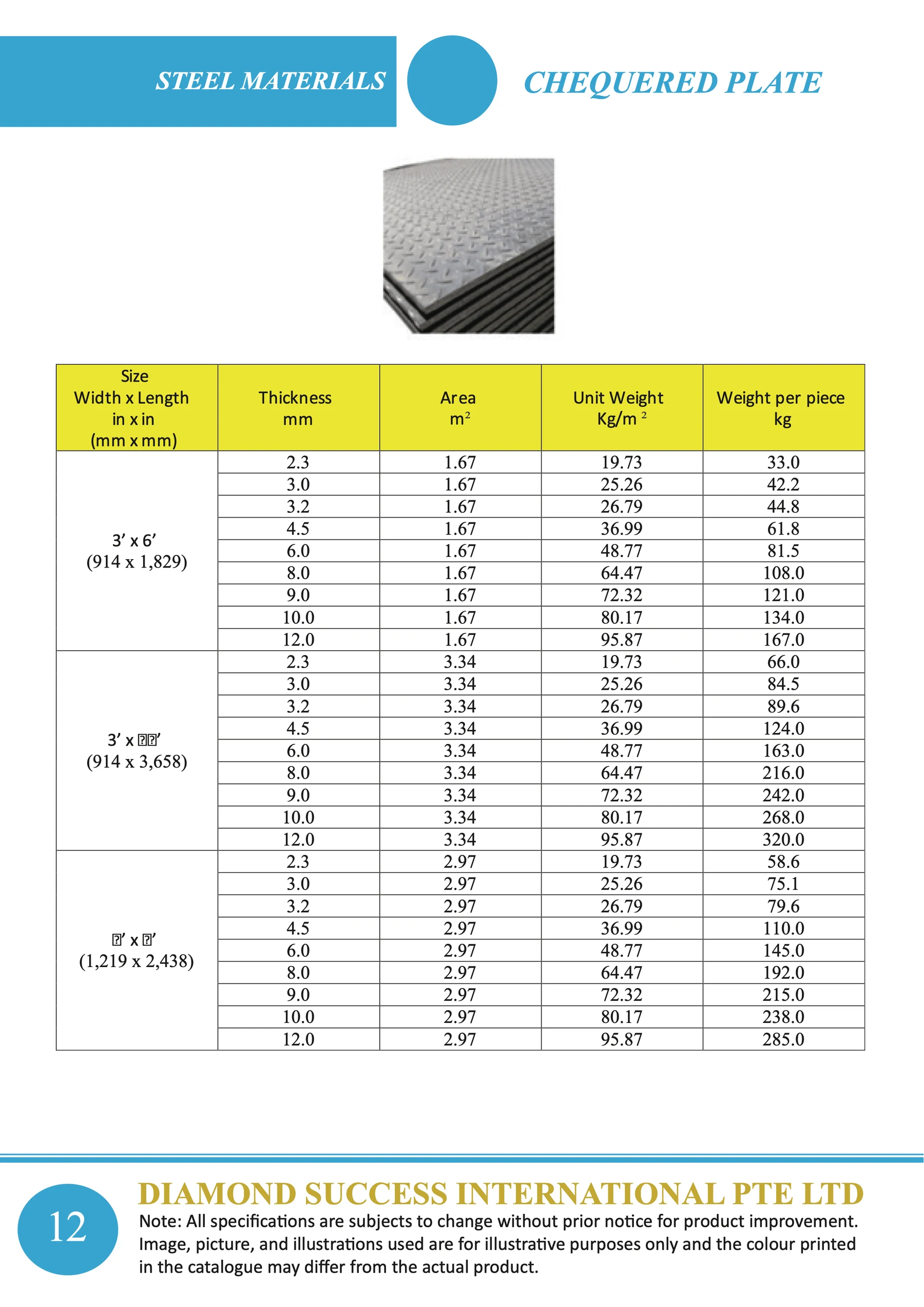

Chequered Plate — dimensions (1 of 3)
Width × length in inches / mm, thickness 2.3–12.0 mm, area, unit weight and weight per piece.
Catalogue p.13

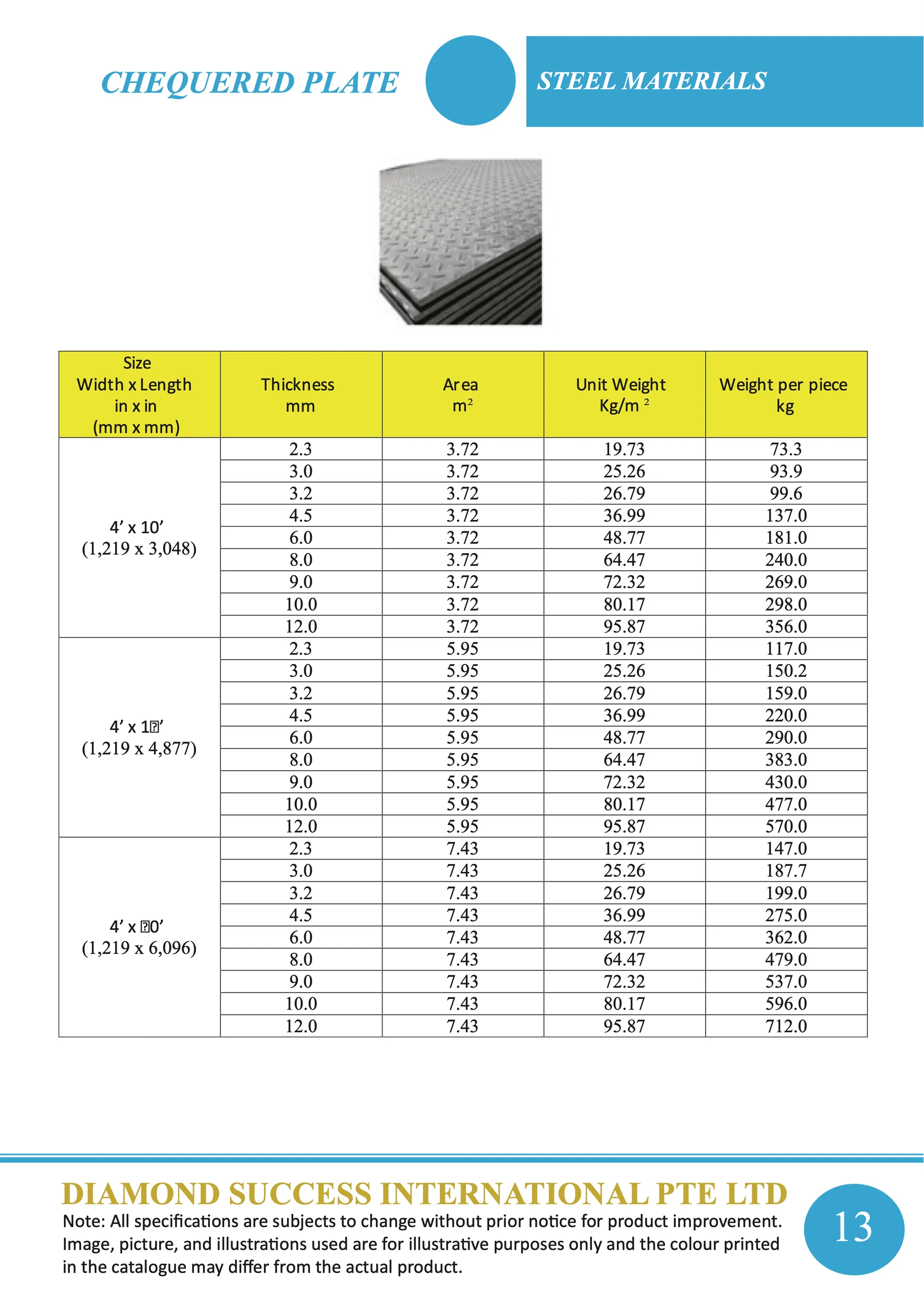

Chequered Plate — dimensions (2 of 3)
Continuation of the chequered plate table.
Catalogue p.14
Chequered Plate — dimensions (3 of 3)
Continuation of the chequered plate table.
Catalogue p.15
ERW & Seamless Pipe — dimensions
Nominal size vs carbon-steel pipe outside diameter (mm) and wall thickness by schedule.
Catalogue p.16

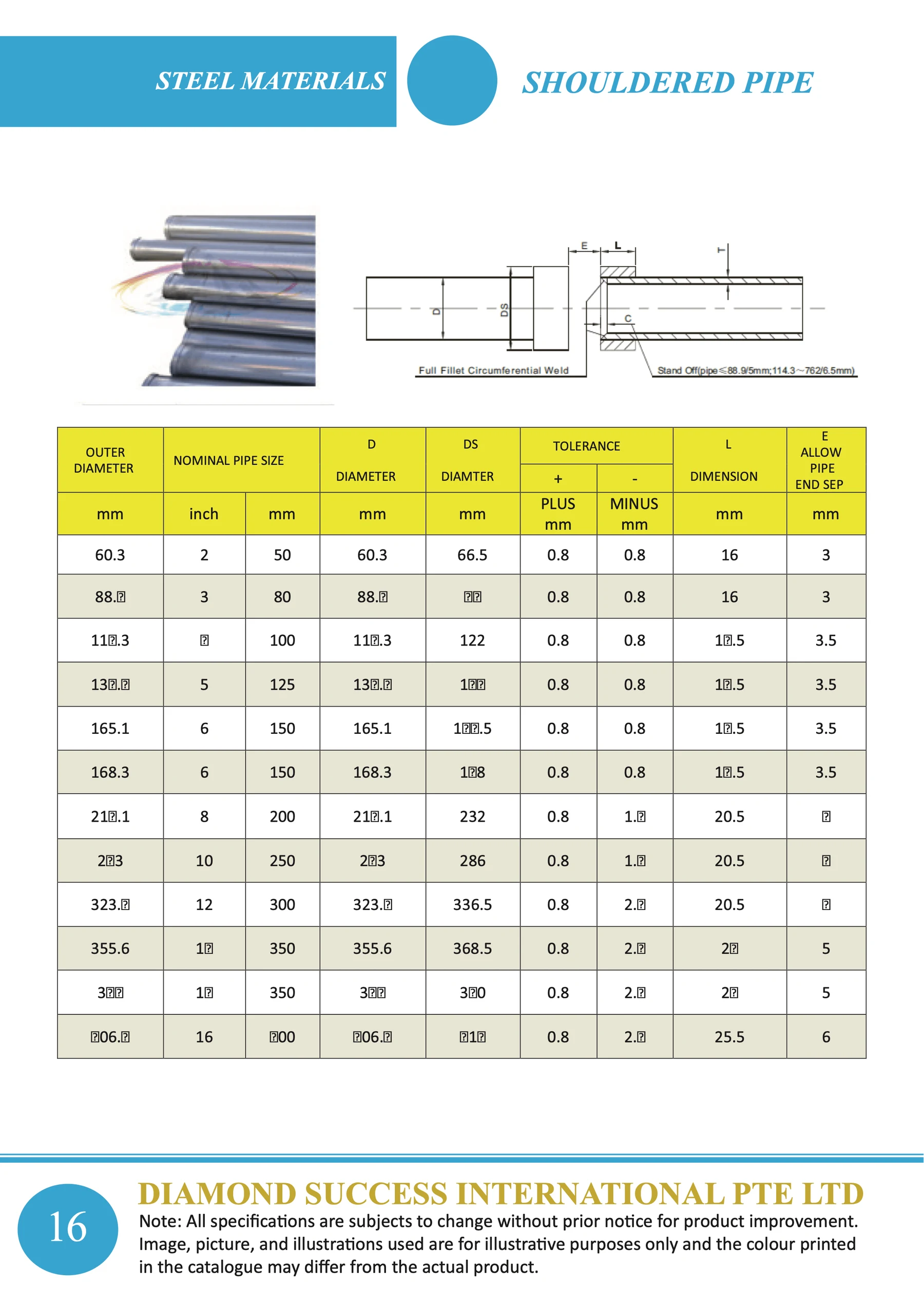

Shouldered Pipe — dimensions
Nominal pipe size vs outer diameter and shoulder dimensions.
Catalogue p.17
Grooved Pipe — dimensions
Nominal size, outer diameter, gasket seat A, groove width B, groove diameter C, groove depth and allowances.
Reference tables
Catalogue p.back matter
MS Steel Pipes reference table (IS:1239 Part I – 1979)
Nominal bore 1/8" to 6", outside diameter, Light (A), Medium (B) and Heavy (C) class thickness and weight kg/m.
Catalogue p.back matter
Conversion table — length, pressure & stress
mm, cm, m, in, ft, yd, mi; N/m², MPa, kgf/mm², psi, lbf/ft², tonf/in², torr, bar, atm.
Need a size that is not in the tables?
Most steel products are available in further sizes and grades. Ask and we will confirm availability and lead time.
